DisplayCob FC

ORDER CODE: DISPLAYCOBFC

60W compact full colour COB PAR with parabolic reflector

DisplayCob FC is the compact version of the popular StudioCob FC - perfect for an installation or indoor venues. DisplayCob FC uses a 60 W COB LED source RGB / FC, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output and interchangeable lens system to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

Main features:

  • Compact LED Par with 60W full colour COB source
  • HD dimming and an extensive, even colour palette

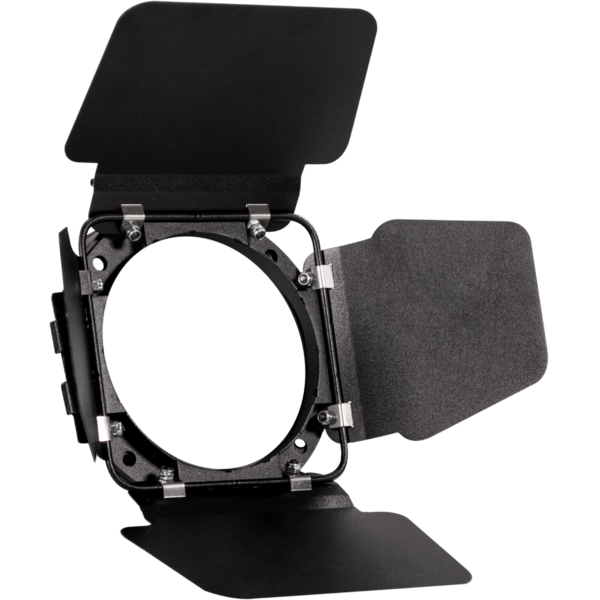

  • Flexible lens options of 15° - 30° - 60° and functional barn doors
See variants

PHOTO GALLERY

DisplayCob FC
DisplayCob FC
DisplayCob FC
DisplayCob FC

Technical specifications

LIGHT SOURCE
  • Source: 60W COB RGB / FC LED
  • Luminous flux: 1'726
  • Lux: (60°) 223lx @3 m full
  • Lux: (30°) 573lx @3 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens

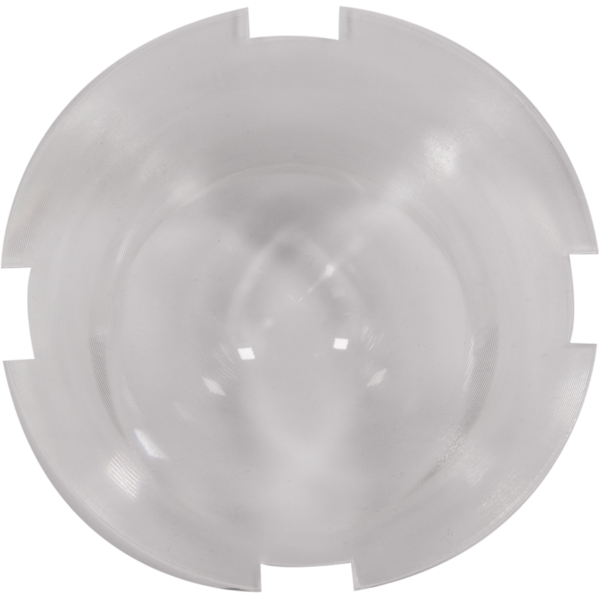

  • Additional optics: 30° (inc) - 15° (opt)
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 5 / 8channel
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 75W
  • Max power consumption (at 120V): 70W
  • Output (at 230V): 24 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: moulded IP power IN connector
  • Dimensions (WxHxD): 166x118x250mm / 6.54''x4.65''x9.84''
  • Weight: 1,85kg / 4.08lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

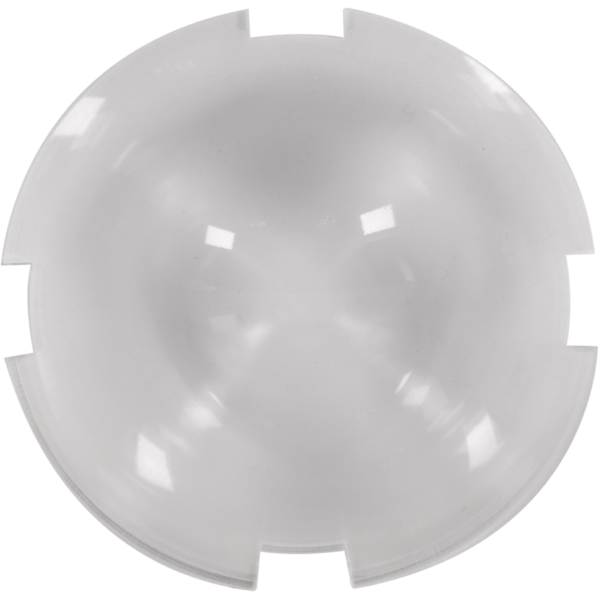

DISPLAYCOBL30
DISPLAYCOBL30
(Included)
Optics for DISPLAYCOB projectors series, 30°
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDisplaycobfc_A4_DATASHEET_(IT).pdf352KB
Letter datasheetDisplaycobfc_A4_DATASHEET_(EN).pdf360KB

User manual

File name File size Download
User manualDisplaycobfc_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
DMX chartDisplaycobfc_DMX_CHARTS.pdf46KB
DISPLAYCOBFC Firmware rev. 1.7
prolights_displaycobfc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
displaycobfc_3ch.fdfDownload
displaycobfc_5ch.fdfDownload
displaycobfc_8ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@display_cob_fc@3_channel@ma_library_update_v14.2.xmlpDownload
prolights@display_cob_fc@5_channel@ma_library_update_v14.2.xmlpDownload
prolights@display_cob_fc@8_channel@ma_library_update_v14.2.xmlpDownload
manufacturer fixture library (Link) Link
display cob fc 3 channel.fix2Download
display cob fc 5 channel.fix2Download
display cob fc 8 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPDisplaycobfc_3D.skp2MB
3D RFADisplaycobfc_3D.rfa1MB
2DDisplaycobfc_CAD_2D.dwg5MB
3DDisplaycobfc_CAD_3D.dwg433KB
2D cad symbolsDisplaycobfc_CAD_2DSYMBOLS.dwg55KB
Technical drawingDisplaycobfc_TECHNICAL_DRAWING.pdf243KB
VectorWorksVECTORWORKS_SYMBOLS.vwx880KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 04/12/2023 New Functions:
  • Added Dimmer Curve Linear, S-Curve, Square Law (default value), Inverse Square Law
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
