MOBIBLAST
TRIBEby TRIBE
end of life

MOBIBLAST

ORDER CODE: MOBIBLAST

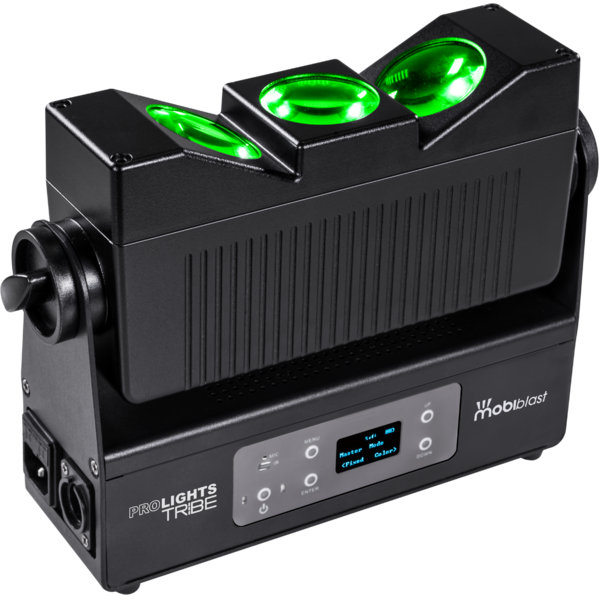

MOBIBLAST is a portable battery-powered projector designed as effect uplighter for special events. MOBIBLAST is equipped with a lithium battery pack and a built-in Wi-Fi module for cable-free operation.
The LED block is independent of the base and tilt is +/- 105° adjustable, granting a full mounting and focus flexibility also through the fixing screw on the base.

Main features:

  • 3x10 W RGBW / FC LEDs
  • LED blocks inclination: +/- 105° tilt adjustment
  • WDMX: built-in Wi-Fi receiver
  • Black OLED display user interface
  • IP rating: IP44
  • Battery life: 12 hours (colour change mode)

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 3x10W RGBW LEDs
  • Lux: 84lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt angle: +/- 105°
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 9 / 16channel
  • Pixel control: pixel2pixel control
  • Wireless Control: integrated, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Operating temperature: 0° ~ +35°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
BATTERY
  • Battery: 14,8V lithium
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: power cable
  • Re-charge time: 4,5h/max
  • Battery status: LED battery status indicator
PHYSICAL
  • IP rating: 44
  • Cooling: passive cooling and fan-free
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 273x211.5x80mm / 10.75''x8.33''x3.15''
  • Weight: 3kg / 6.61lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(Optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualMobiblast_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
MOBIBLAST Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_mobiblast.d4Download
manufacturer fixture library (Link) Link
prolights_mobiblast_4ch.hedDownload
prolights_mobiblast_9ch.hedDownload
prolights_mobiblast_16ch.hedDownload
manufacturer fixture library (Link) Link
mobiblast_4ch.fdfDownload
mobiblast_9ch.fdfDownload
mobiblast_16ch.fdfDownload

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DMobiblast_CAD_3D.dwg9MB
Technical drawingMobiblast_TECHNICAL_DRAWING.pdf255KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 17/12/2018 10 second default display backlight
