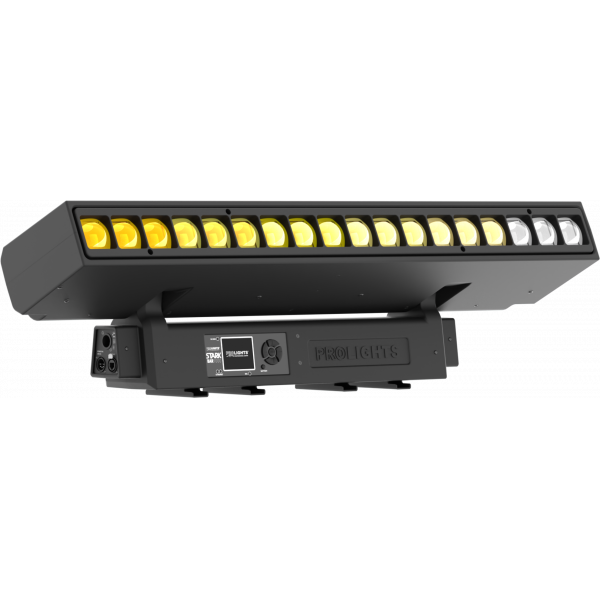

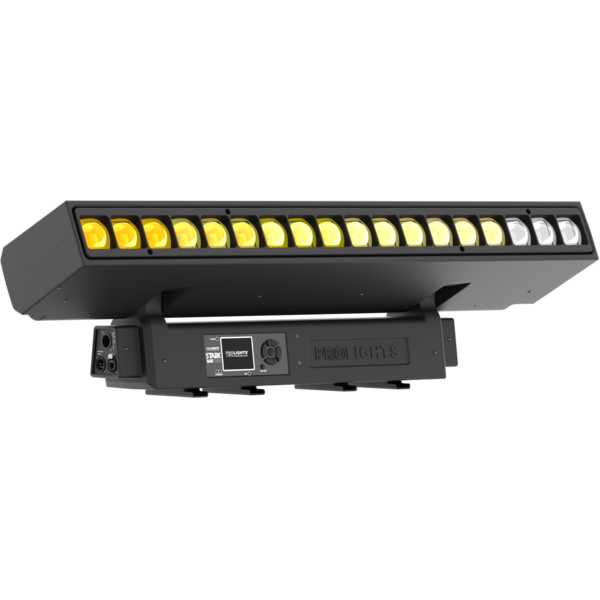

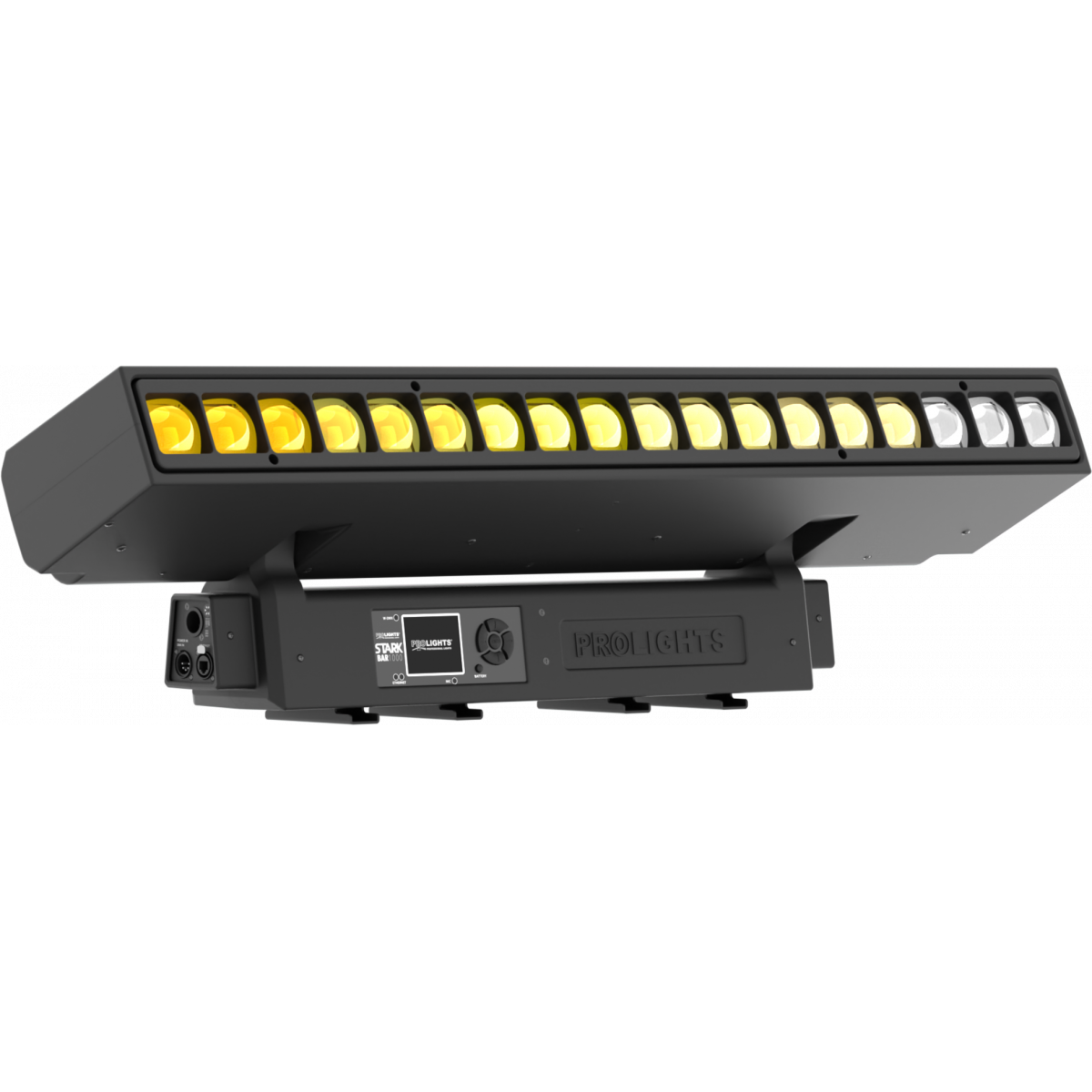

Stark Bar1000

ORDER CODE: STARKBAR1000

18x40W moving LED batten with zoom and pixel control

Stark Bar1000 is a powerful and zoomable LED batten able to be used as a light curtain, CYC light or wash light. Each of the 40W Osram Ostar RGBW LED pixels are individually controllable and completely consistent with the rest of the Stark family.

Main features:

  • 18x40W RGBW LEDs
  • Massive 3° to 45° zoom range
  • Motorised tilt movement
  • Individual pixel control with an on-board generator for precise and fast to create effects
See variants

PHOTO GALLERY

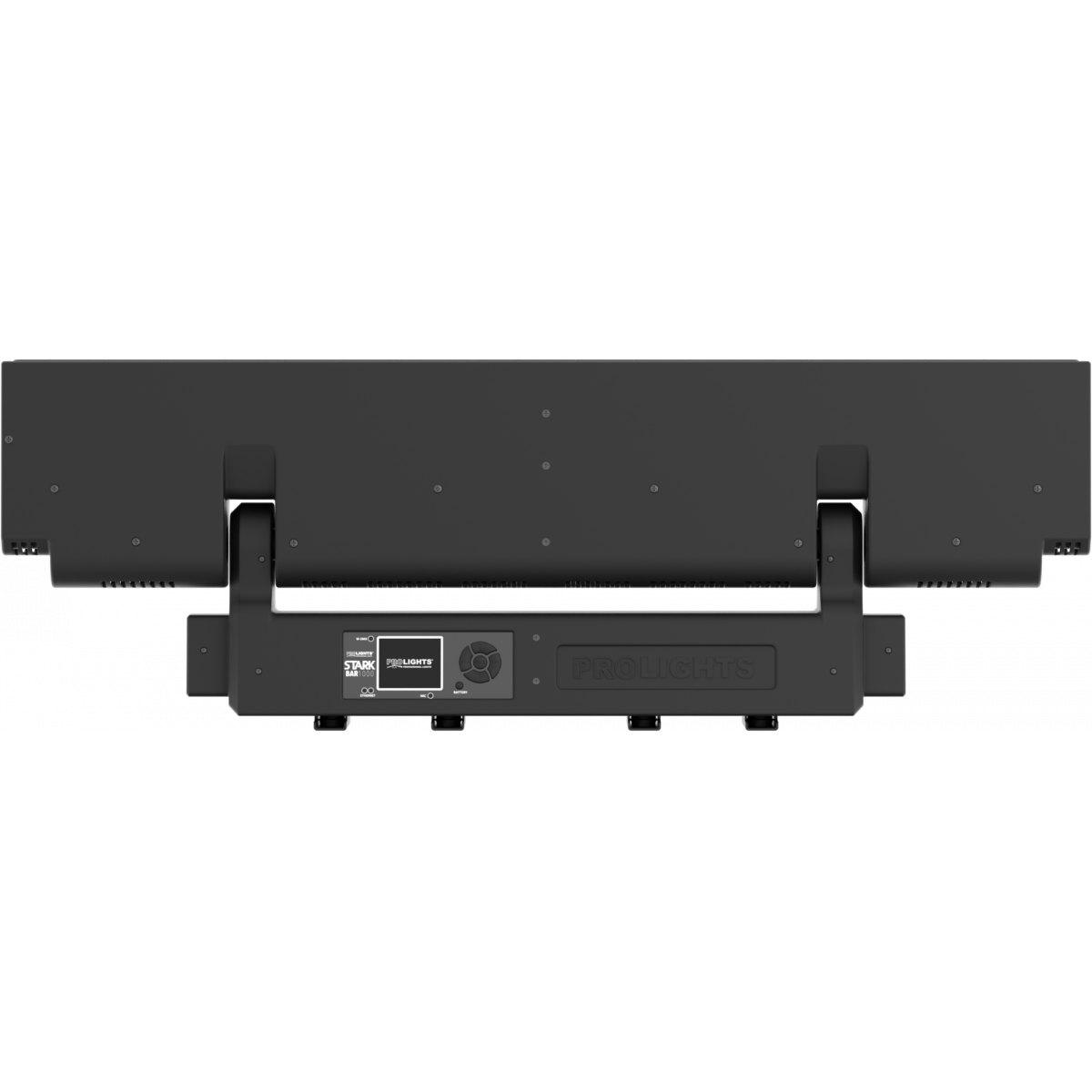

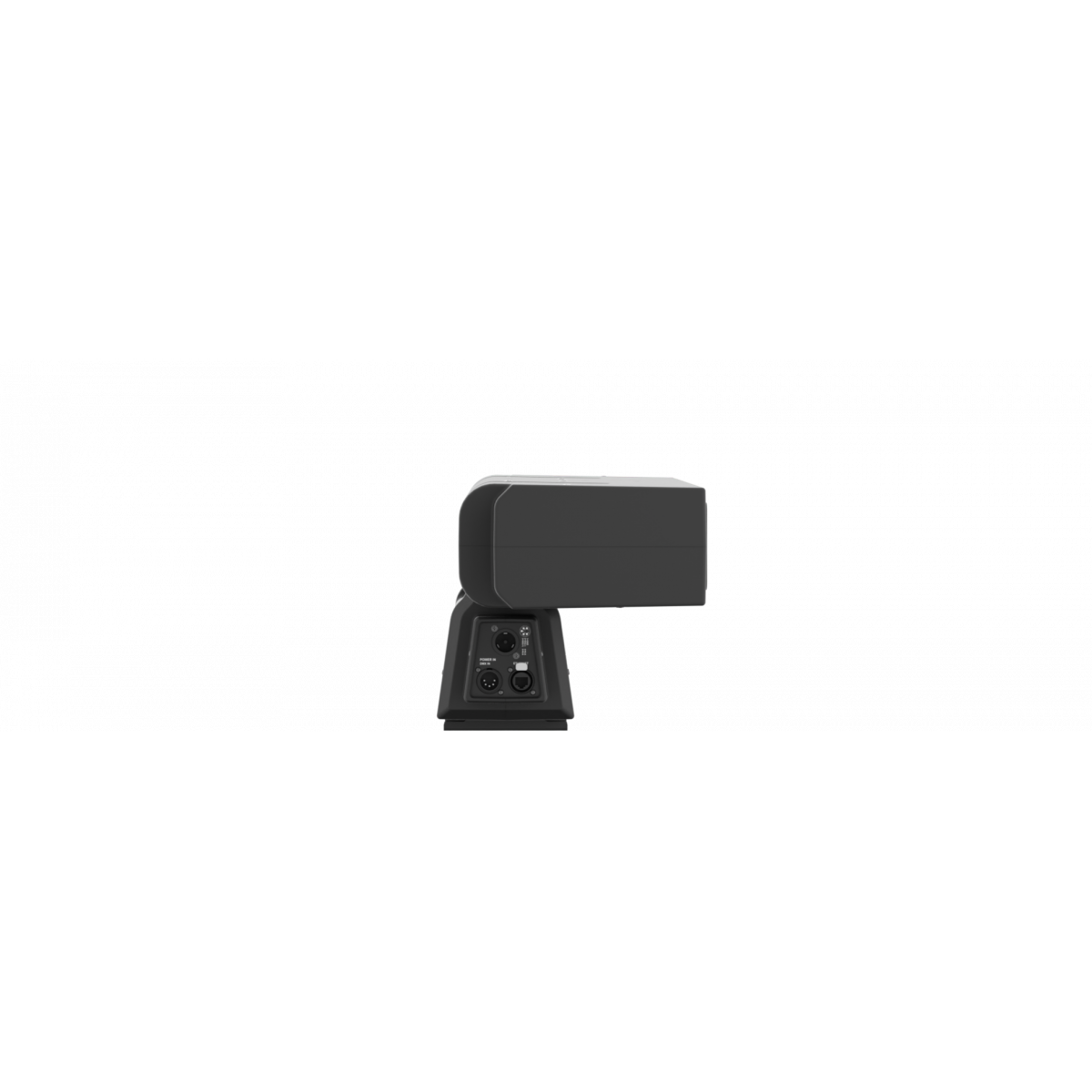

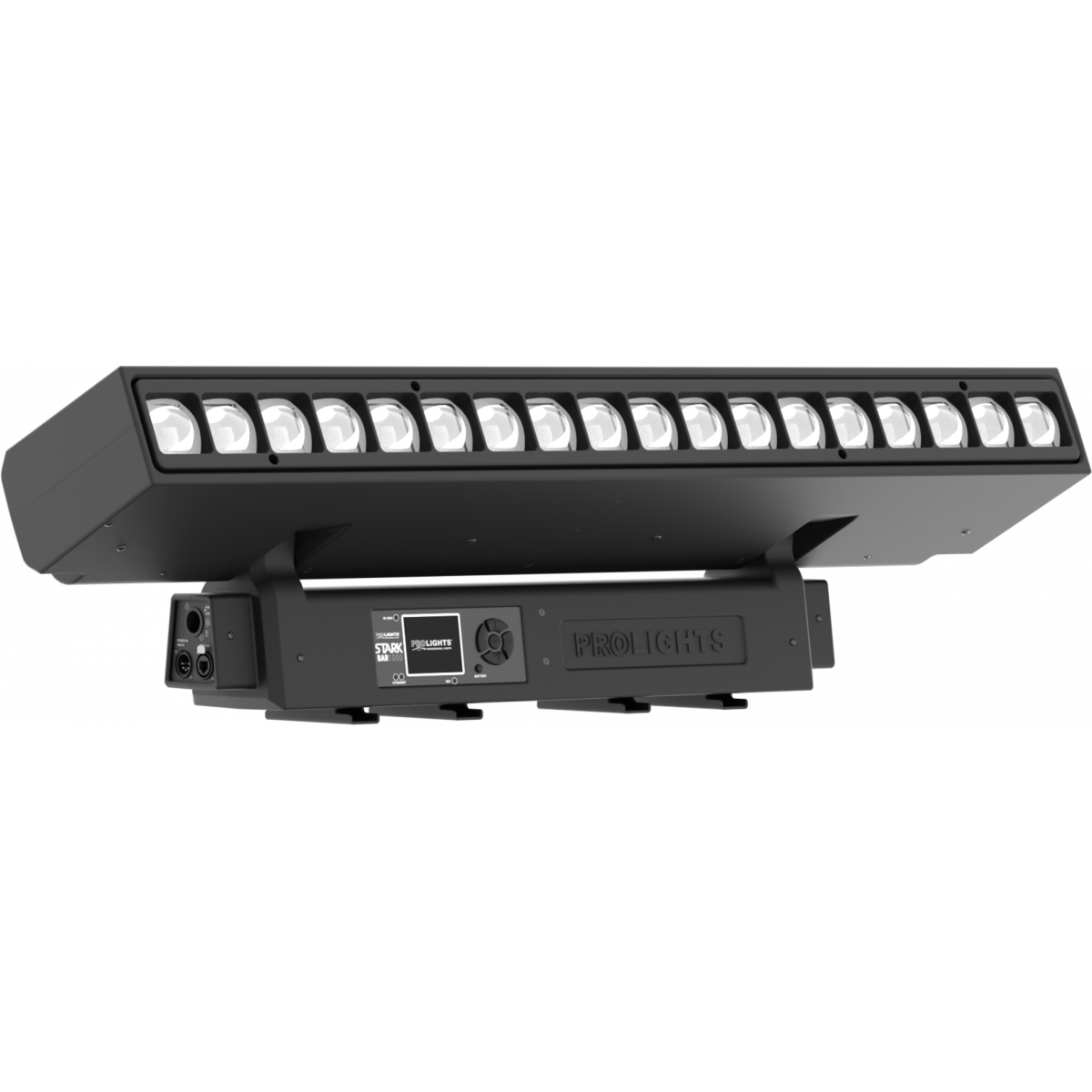

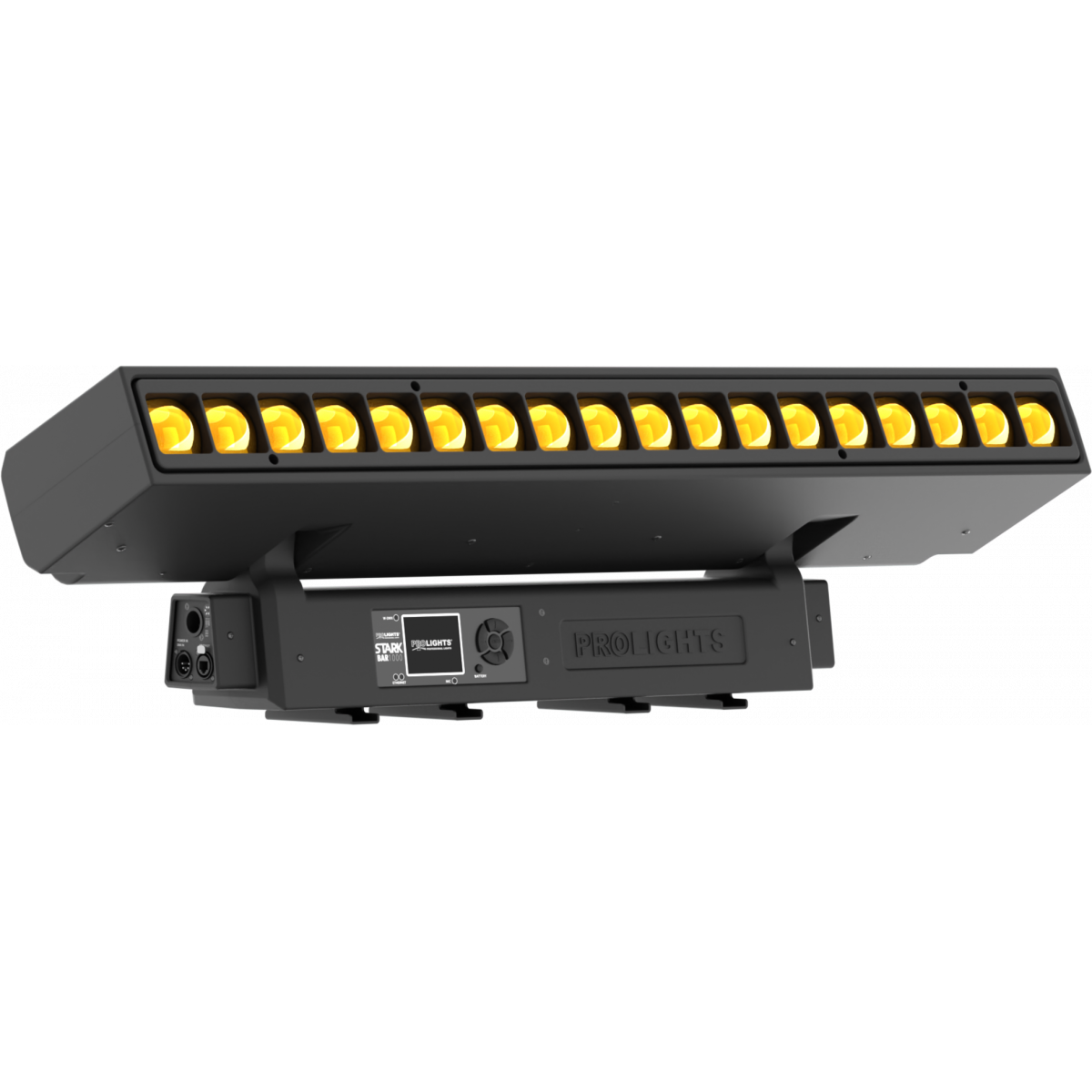

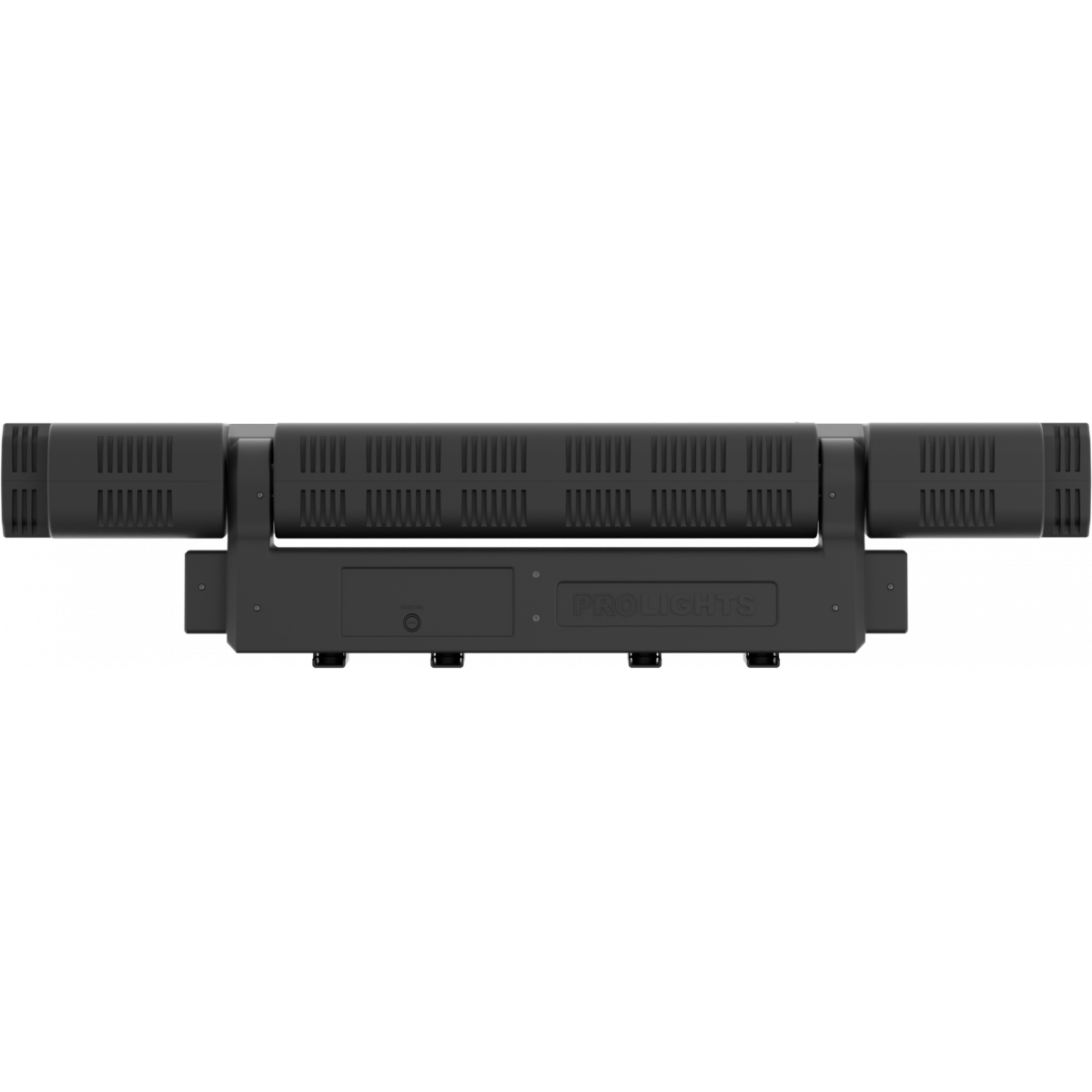

Stark Bar1000
Stark Bar1000
Stark Bar1000
Stark Bar1000
Stark Bar1000
Stark Bar1000

Technical specifications

LIGHT SOURCE
  • Source: 18x40W RGBW Osram Ostar LEDs
  • CCT: Tunable 2.000 K ~ 10.000
  • Lux: (3°) 42'530 lx - (45°) 6'782lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 3° - 45° motorised linear zoom
  • Lens diameter: square 50x50mm / 0''x1.97''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 13 / 23 / 91channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 583W
  • Max power consumption (at 120V): 583W
  • Standby power: 26W
  • Output (at 230V): 6 units on a single power line
  • Output (at 120V): 3 units on a single power line
  • Inrush current: ＜30A @115VAC /＜50A @230VAC
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 1000x340x210mm / 39.37''x13.39''x8.27''
  • Weight: 19kg / 41.89lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
OS24D13
OS24D13
(included)
Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Starkbar1000_A4_DATASHEET_(EN).pdf 172KB
Letter datasheet Starkbar1000_A4_DATASHEET_(IT).pdf 186KB

User manual

DMX chart & personalities

File name File size Download
DMX chart Starkbar1000_DMX_CHARTS.pdf 54KB
STARKBAR1000 Firmware rev. 2.1.03
manufacturer fixture library (Link) Link
prolights_starkbar1000.d4Download
manufacturer fixture library (Link) Link
prolights_starkbar1000_fx.hedDownload
prolights_starkbar1000_pix-fx.hedDownload
prolights_starkbar1000_wash.hedDownload
prolights@starkbar1000_fx_23ch@.xmlDownload
prolights@starkbar1000_wash_13ch@.xmlDownload
prolights@starkbar1000_91ch_pixfx@.xmlDownload
stark 1000 fx_bck.hog4showDownload
starkbar fx_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
STARKBAR1000 Firmware rev. 1.2.00
manufacturer fixture library (Link) Link
prolights_starkbar1000.d4Download
manufacturer fixture library (Link) Link
prolights_starkbar1000_fx.hedDownload
prolights_starkbar1000_pix-fx.hedDownload
prolights_starkbar1000_wash.hedDownload
prolights@starkbar1000_fx_23ch@.xmlDownload
prolights@starkbar1000_wash_13ch@.xmlDownload
prolights@starkbar1000_91ch_pixfx@.xmlDownload
stark 1000 fx_bck.hog4showDownload
starkbar fx_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Starkbar1000_3D.skp 582KB
2D Starkbar1000_CAD_2D.dwg 2MB
3D Starkbar1000_CAD_3D.dwg 919KB
2D cad symbols Starkbar1000_CAD_2DSYMBOLS.dwg 57KB
Technical drawing Starkbar1000_TECHNICAL_DRAWING.pdf 320KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 400KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.1.03 STABLE 27/11/2023 Improvement:
  • Pixel Setting Added in Menu/Fixture. It includes:
    • Standard 1 (default value)
    • Standard 2
Note: Pixel Setting must be set to Standard 2 if S/N is between 0474106230001 and 0474106230100.		 Rev. 1.0
1.2.00 STABLE 06/07/2017 This firmware is compatible with all version of V-1.x.xx. Rev. 1
