EclProfile

EclProfile is the new LED profiler by Prolights, featurig a new level of performance in the field of ellipsoidal with LED technology. The combination of an high flux 150W COB LED with the new optical system allows EclProfile to performs a uniform projection.
Design of EclProfile makes it fit properly in studio applications, theaters, events, architectural and in environments having limited power supplies.

Main features:

  • Color Temperature: Tungsten 3.100 K, Daylight 6.000 K
  • Lumen: Tungsten 5'352 lm, Daylight 6'963 lm
  • High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
See variants

PHOTO GALLERY

EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile
EclProfile

Technical specifications

LIGHT SOURCE
  • Source: 1x150W high-power white LED
  • CCT: TU 3100 K - DY 6000
  • Luminous flux: TU 5352 lm - DY 6963
  • Lux: TU 9960lux - DY 12976lx @3 m - 19°
  • CRI: TU 98 Ra - DY 96
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 19° / 26° / 36° / 50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Gobo size: B
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1/2/5channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 172W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 282x466x530mm / 11.1''x18.35''x20.87''
  • Weight: 9,25kg / 20.39lbs

Versions

Code
Col. temperature
ECLDY
ECLDY (END OF LIFE)
6000K
ECLTU
ECLTU (END OF LIFE)
3100K

Accessories & Related Products

ECLMP1
ECLMP1
(optional)
Aluminium middle part for ECL, compatible with 19°, 26° optics
ECLL19
ECLL19
(optional)
Optics for ECL profiler, 19° beam

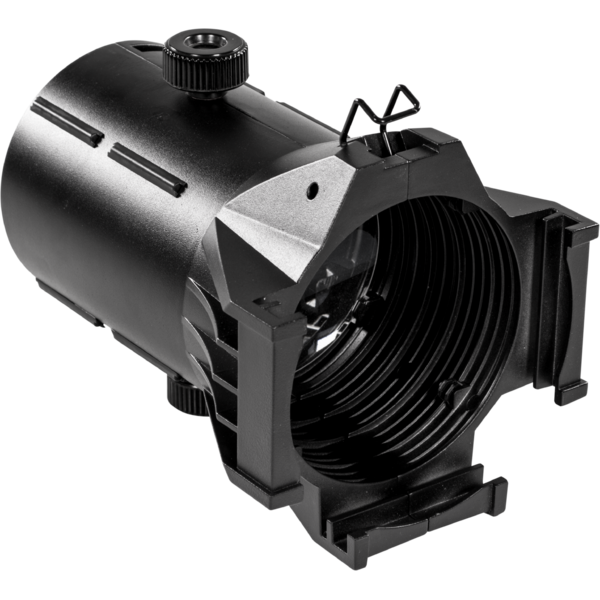

ECLL26
ECLL26
(optional)
Optics for ECL profiler, 26° beam

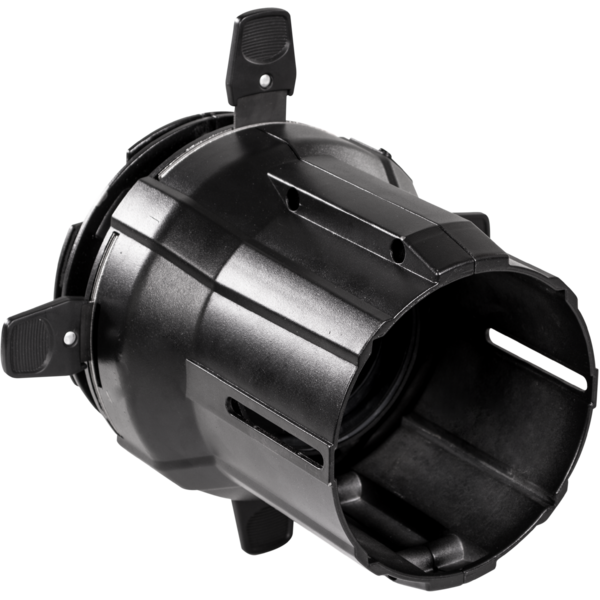

ECLMP2
ECLMP2
(optional)
Aluminium middle part for ECL, compatible with 36°, 50° optics
ECLL50
ECLL50
(optional)
Optics for ECL profiler, 50° beam
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

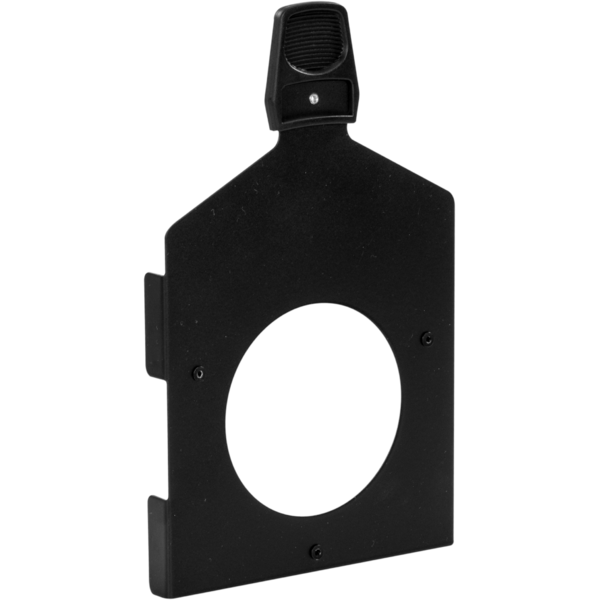

ECLGH
